King Cattle Master

6-Bar Gates & Panels

For crowding areas, feed lots, corrals

1-7/8" Galvanized tubing
Constructed of all hi tensile tubing. Our tubing is hot dipped galvanized American made high yield strength steel giving a consistent zinc coating inside & out. These panels and gates are strong enough for corrals to work most any cattle. All gates are 52" tall, and all panels are 64" tall. Gate hardware includes two (2) heavy duty hinges with 12" bolts, 2 washers and 2 nuts. Panels are available with either pin & chain or panel clamp connector. Horizontal bars are saddle notched and welded for superior strength in both gates and p[anels. HD vertical stays 1-8', 1-10', 2-12', 2-14', 3'16' doubled on each side. All gates & panels are 4" shorter than stated lengths. Panels have 12" looped legs for stability and to prevent sinking in sandy or moist soils. Tube spacings are 6", 7-1/4", 8-3/4", 8-3/4", 9-1/2".

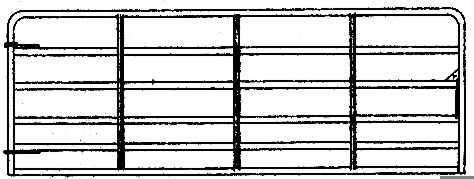

**King Cattle Master Gates**
Order #	Length	Weight
KCM-04-G	4'	46
KCM-06-G	6'	61
KCM-08-G	8'	79
KCM-10-G	10'	95
KCM-12-G	12'	112
KCM-14-G	14'	128
KCM-16-G	16'	146

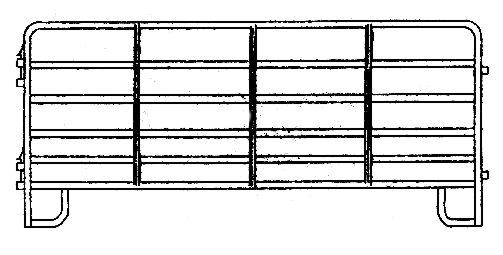

**King Cattle Master Panels**
Order #	Length	Weight
KCM-06-P	6'	64
KCM-08-P	8'	83
KCM-10-P	10'	98
KCM-12-P	12	116
KCM-14-P	14'	132
KCM-16-P	16'	150

Cattle Master

6-Bar Gates & Panels

For light crowding areas, corrals

1-5/8" Galvanized tubing
All gates are 52" tall, all panels are 64" tall. Gate hardware includes two (2) heavy duty hinges with 12" bolts, 2 washers and 2 nuts. Panels are available with either pin & chain or panel clamp connector. Vertical stays 1-8', 1-10', 2-12', 2-14', 3'16' doubled on each side. Tube spacings are 6", 8-1/4", 8-3/4", 10".

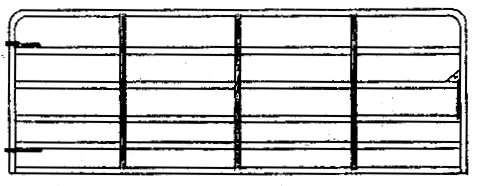

**Cattle Master Gates**
Order #	Length	Weight
CM-04-G	4'	30
CM-06-G	6'	40
CM-08-G	8'	54
CM-10-G	10'	64
CM-12-G	12'	77
CM-14-G	14'	87
CM-16-G	16'	100

**Cattle Master Panels**
Order #	Length	Weight
CM-06-P	6'	43
CM-08-P	8'	57
CM-10-P	10'	67
CM-12-P	12'	80
CM-14-P	14'	90
CM-16-P	16'	103

Page 6
