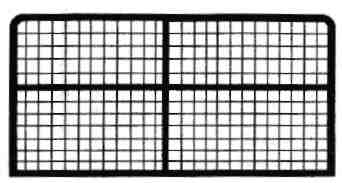

All gates are 74" tall. Gate hardware includes two (2) heavy duty hinges with 12" bolts, 2 washers, and 2 nuts. Panels come with panel clamp connector. Horizontal bars are saddle notched and welded for superior strength. Vertical supports are 1-12', 1-14', 1-16'. All gates and panels are 4" shorter than stated lengths. All gates have rounded corners. Square corners are available on request. Specify if being used as gates or panels.

Order #	Mesh Size	Length	Height
EG-4	4" x 4"	4'	6'2"
EG-6	4" x 4"	6'	6'2"
EG-8	4" x 4"	8'	6'2"
EG-10	4" x 4"	10'	6'2"
EG-12	4" x 4"	12'	6'2"
EG-14	4" x 4"	14'	6'2"
EG-16	4" x 4"	16'	6'2"

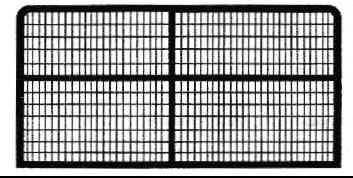

Order #	Mesh Size	Length	Height
SEG-4	2" x 4"	4'	6'2"
SEG-6	2" x 4"	6'	6'2"
SEG-8	2" x 4"	8'	6'2"
SEG-10	2" x 4"	10'	6'2"
SEG-12	2" x 4"	12'	6'2"
SEG-14	2" x 4"	14'	6'2"
SEG-16	2" x 4"	16'	6'2"

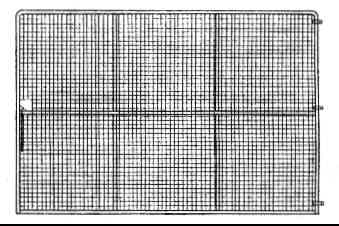

Constructed of all hi tensile tubing, our tubing is hot dipped galvanzied American made high yield strength steel giving a consistent zinc coating inside & out. All gates are 8'2" tall. Gate hardware includes three (3) heavy duty hinges with 12" bolts, 2 washers and 2 nuts. Horizontal bars are saddle notched and welded for superior strength. Vertical supports are 1-8', 1-10', 2-12', 2-14', 3-16'. All gates and panels are 4" shorter than stated lengths.

Order #	Mesh Size	Length	Height
DG-4	4" x 4"	4'	8'2"
DG-6	4" x 4"	6'	8'2"
DG-8	4" x 4"	8'	8'2"
DG-10	4" x 4"	10'	8'2"
DG-12	4" x 4"	12'	8'2"
DG-14	4" x 4"	14'	8'2"
DG-16	4" x 4"	16'	8'2"
